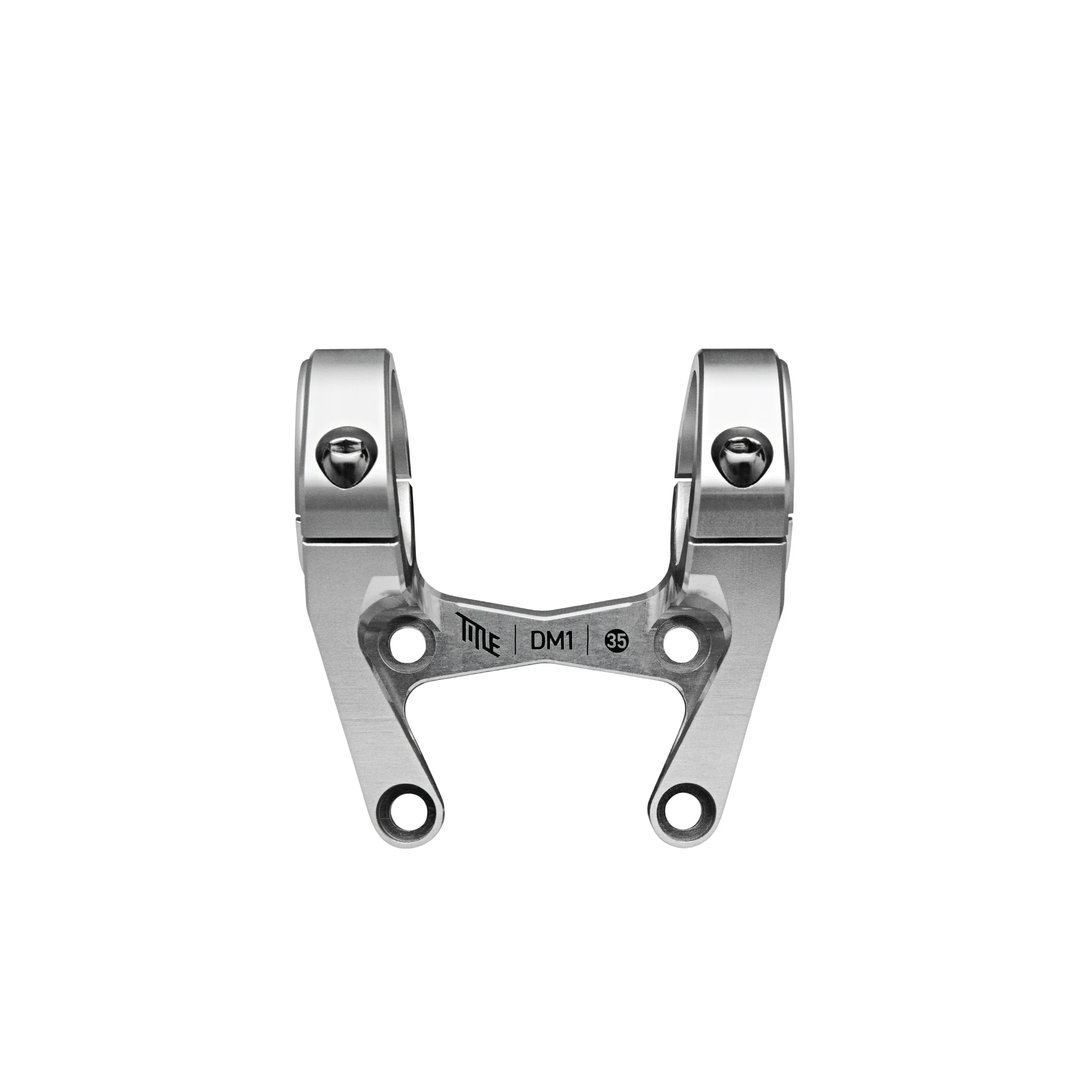

Upcycled DM1 35 Direct Mount Stem

Upcycled DM1 35 Direct Mount Stem

UPCYCLING DETAILS

  • All products in the upcycling program are new and structurally sound, but have some form of visual imperfection such as, but not limited to, scratches, laser etching imperfections, or some other small manufacturing imperfection...
  • Upcycled products are covered under warranty
  • ALL SALES ON UPCYCLED PRODUCTS ARE FINAL
  • We don't provide individual photos of the products, caveat emptor.

FEATURES

  • Rigorously tested by EFBE. Passed TRI-TEST® GR. Certified for freeride and downhill mountain bikes
  • Machined from solid 7075 T73 aluminum
  • Ultra-wide clamp
  • Thin headset spacer is required
  • Not compatible with the FORM aluminum handlebars

SPECIFICATIONS

  • 35mm clamp diameter
  • 46mm length
  • 85mm width
  • 150g (172g including all 8 bolts)
  • M6 x 1.0 x 18mm / 20mm stainless steel bolts

INTENDED USE

Downhill / Freeride

RECOMMENDATIONS

Handlebar clamps to be tightened with equal gaps on top and bottom. All stems have MAX Torque specs etched onto the stem body. Note that MAX torque specs are just that, a maximum rating. For most purposes, 5-6nm should be adequate.
